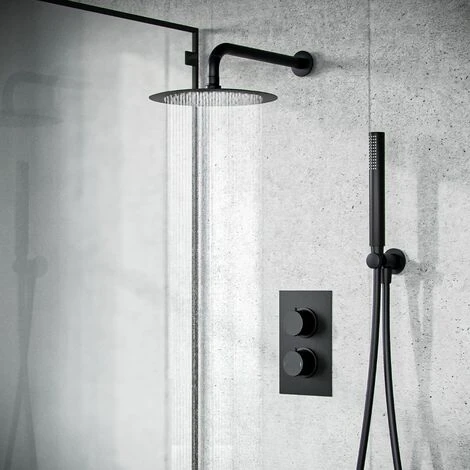

Voilet 2 Dial 2 Way Round Concealed Thermostatic Mixer Valve, Shower Head & Handset Matte Black

Description

The concealed shower valve has two easy controls, for temperature and flow. The valve body comes with a contemporary square face plate.

Key Features

• Black matte finish
• Durable and solid brass construction
• Top Dial – controls water to 2 outlet diverter
• Bottom Dial – temperature control
• Slim Shower Head Design

Specifications

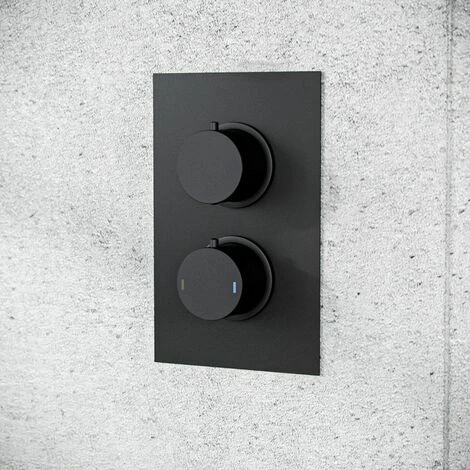

Concealed Thermostatic Mixer Valve

• Height: 210mm
• Width: 130mm
• Dial Depth: 40mm
• Finish: Matte Black
• Thermostatically controlled
• Operating range 20 – 50 deg C with 38 deg C safety button
• Chosen temperature maintained to within +/-1ºC.
• Automatic shut off in event of water cold supply failure
• UK standard size fitting, Inlet 3/4″, Outlet 3/4″

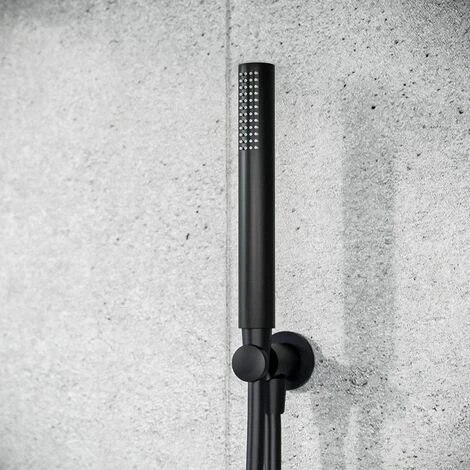

Handset

• Modern matt black style
• 1.5m long flexible PVC shower hose
• Conical end piece to slot into riser and connect to shower handset
• Nut end piece to connect to shower/bracket
• Bracket – durable solid brass construction
• Handset – ABS plastic
• UK standard size fitting

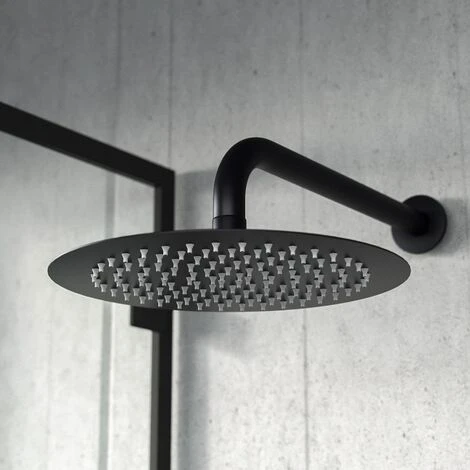

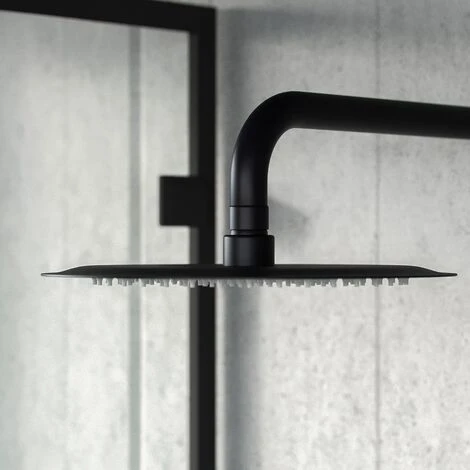

Shower Arm & Head

• Arm Length : 300mm
• Shower Head : 200mm
• Finish : Matte Black
• Single mode shower head with swivel joint
• Brass swivel elbow
• Rub clean anti scale nozzles
• UK standard size fitting
• Mount : Wall
• 40mm Thread
• 1/2″ Inch Shower Head Connection

Technical Information: Suitable For The Following Water Systems:

• Combi-boilers
• Gravity Fed systems
• MegaFlow Systems
• Pumped systems
• Un-vented systems
• Pressurised cylinder systems
• Subject to a minimum pressure of 0.5 bar to maximum 7.0 bar

Package Contents

• Concealed Thermostatic Mixer Valve
• Shower Head
• Handset
• Shower Arm
