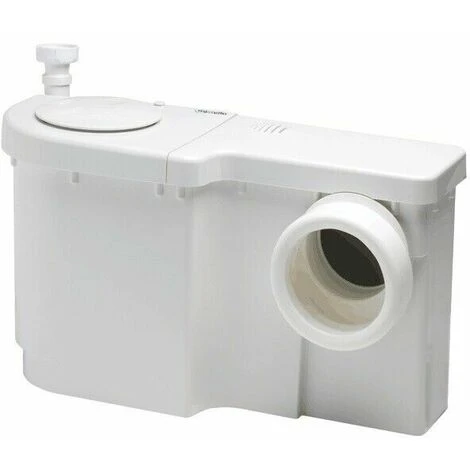

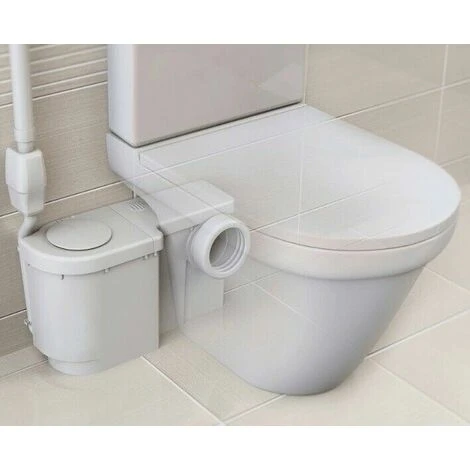

The Wasteflo WC1 Macerator is a great product to choose if you’re installing a toilet into your bathroom or en suite. The slim design allows it to be fitted nicely behind a standard or slimline toilet whilst still allowing room for the cistern to be fitted against the wall. The smart watertight cassette unit enables easy removal and maintenance of the working parts, without having to remove the whole WC, cistern or pipework.

If you’re wanting to install an additional toilet into your home, then this Wasteflo WC1 would be the perfect choice for you. The job of a macerator is to take the waste from your toilet to the main sewage pipe. This makes it even easier to install a toilet in any room of the house, maybe in the loft conversion or basement. This Macerator is manufactured to the highest of standards as it is by Stuart Turner, however, if you do find any factory defects, it is covered by a 2-year manufacturing guarantee.

Removable Cassette System Wasteflo products are designed with a removable cassette system. This allows for clean and easy access without having to remove any pipe work or the appliance when servicing or maintaining the unit.

Super-Slim Design The unique offset design of the WC connector allows the Wasteflo to fit easily behind the toilet pan without pushing the cistern away from the wall. Traditional designs often require an unattractive wooden batten to hold the toilet cistern in place.

Inverted 4 Cutter Helical Blade The Industrial 4 Blade Inverted Cutter is an innovation, designed specifically to overcome the jamming problems of traditional 2 blade systems.  It combines four inverted, hardened steel, cutting blades with a powerful vortex pump.  This design dramatically reduces the chances of blockage and jamming caused by foreign objects in the toilet.

Adjustable WC Pan Connector Standard rigid pan connectors require the height of the toilet waste outlet to be 186mm high in accordance with British Standard BS EN 33:2011.  This is great in theory but with an increasing number of toilets coming from European manufacturers or imported from Turkey, Egypt and the Far East Many toilets will not have the waste at this exact height.  The unique Wasteflo adjustable pan connector will fit any height of waste outlet from as low as 164mm all the way up to 196mm

Standard Plumbing Connections Wasteflo macerators use standard nut and cone waste fittings, instead of the cheaper metal jubilee clips used on other brands.  Metal jubilee clips are difficult to clean and prone to corrosion, making them unhygenic. Pipes can also be accidentally dislodged from Jubilee Clip fittings resulting in leakage of foul waste water.  The Nut and Cone waste fittings used on Wasteflo macerators result in easier to clean, more secure and more attractive connections.

32 / 28 / 22mm Outlet With Non-Return Valve Flexible connection options

2 Year Guarantee Quality is everything and Stuart Turner have you covered for a full 2 years without making you jump through hoops to register the product!   All Wasteflo macerators also benefit from the Stuart Turner Pump Assist helpline and service back up

Quiet Operation Disposing of your waste doesn’t need to be loud, especially with noise levels as low as 50dB.

Quality Guaranteed To ensure Wasteflo pumps are suitable for use they’re BS EN 60335 compliant.

CE Marked Wasteflo products are CE marked to show you that they comply with all UK safety standards.

BS EN ISO 9001:2015 Approved Full compliance with quality management systems with BS EN ISO 9001:2015

Features and benefits:
•  Macerators are a simple way to pump waste water from a toilet, where there is no direct access to a sewage pipe
•  Provides a clean and simple way to remove waste water
•  You can now fit a bathroom, kitchen or utility room, anywhere within your house!
•  Automatically reduce waste to a liquid form and pump it away to a soil pipe
•  Easy installation process
•  Easy maintenance
•  Avoids need for a separate trap
•  WC coupling features innovative inbuilt height adjustment (± 16 mm) to accomodate variations in WC outlet postion
•  Complies with BS EN 12050.   Technical Information: •  Noise level: 50 dB
•  Maximum head: 5.4metres
•  Vertical pumping distance: up to 5 metres
•  Horizontal Pumping distance: Up to 52 metres
•  Maximum flow: 90 l/min
•  Outlet suitable for 32 mm, 28 mm or 22 mm waste pipe

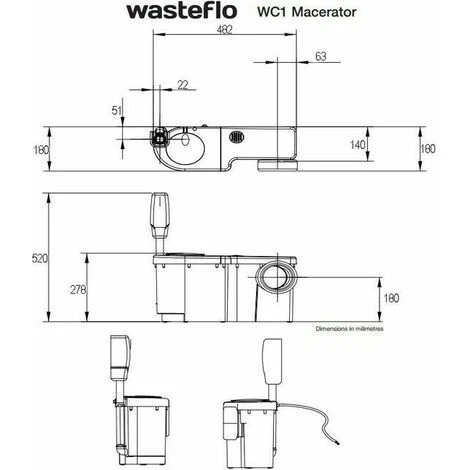

•  Supplied pre-wired with 1.5 m power cable   Dimensions:
•  Length: 482mm
•  Width: 180mm
•  Width behind pan: 140mm
•  Height (excluding hoses): 278mm     Stuart Turner Wasteflo WC1 Macerator Videos
