- ManoMano ReferenceME43422241
- Warranty5 years
- Product codeQUEV51+HEAD49+ARM01
Features and Benefits:
- Minimalist sleek design
- Can be fitted vertically or horizontally
- Accurate flow control
- Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
- Full thermal protection to prevent scalding in the event of hot or cold water shut off
- In the event of hot or cold water failure the valve will shut down as per the relevant standard
- The patented cartridge is highly resistant to calcium build up – even in hard water areas
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- Excellent flow rates – even at low pressure
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn’t need re-plumbing
- Simply remove the cartridge turn 180 degree and replace
- WRAS, TMV2 and TMV3 approved
- Round minimalist design
- 1/2 BSP swivel connector
- Easy clean nozzles
- Suitable for low pressure
- Wall mounted straight design
- Manufactured from high quality brass & ABS
- Guarantee : 5 Year (12 months on serviceable moving parts from the date of purchase), please see manufacturer guarantee policy for more information
| Shower Type | Thermostatic |
|---|---|
| Shower Valve Position | Concealed |
| Shower Valve Outlets | 1 |

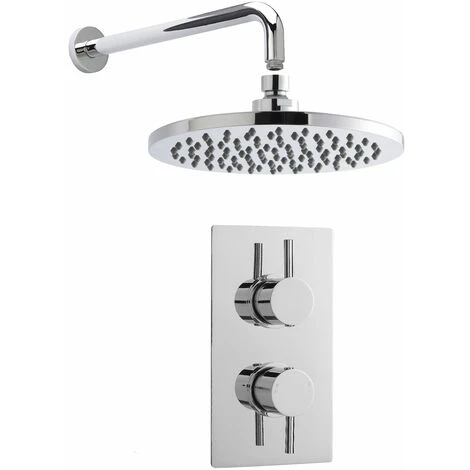

| Shower Includes | Shower Valve, Fixed Head, Shower Arm |
| Shower Valve Controls | 2 |

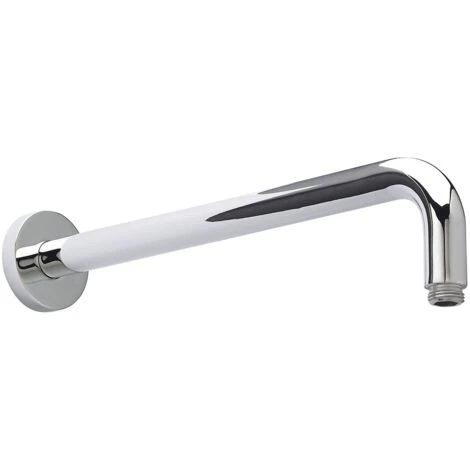

| Shower Arm Length | 395mm |
| Shower Head Width | 200mm |
| Shower Head Depth | 200mm |
| Minimum Pressure | 0.1 Bar |
| Pipe Size | 15 mm (1/2 |
| Material | Brass/ABS |
| Colour | Chrome |
| Brand | Nuie |
| Collection | Quest |
| Style | Modern |
| Market | Domestic |
| Manufacturer Part Number(s) | QUEV51+HEAD49+ARM01 |
| Flow Rate – 0.1 Bar | 5.5 l/min |
| Flow Rate – 0.5 Bar | 14 l/min |
| Flow Rate – 1.0 Bar | 20 l/min |
| Flow Rate – 2.0 Bar | 29 l/min |
| Flow Rate – 3.0 Bar | 44 l/min |
