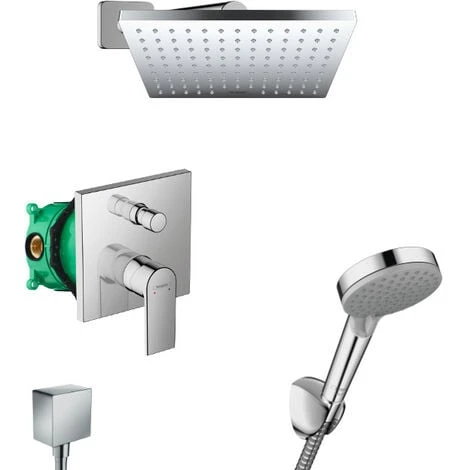

Hansgrohe All-in-one Concealed Shower Set With 23cm Overhead Shower + 2 Jets Hand Shower, Chrome, Hansgrohe Vernis Shape (VernisShape-1)

Features of All-in-one concealed shower set with 23cm overhead shower + 2 jets hand shower, Chrome, Hansgrohe Vernis Shape (VernisShape-1) :

• Hansgrohe Vernis Shape Overhead shower 230 1jet EcoSmart, Chrome (26283000).
• Hansgrohe Vernis Shape Single lever bath mixer for concealed installation, Chrome (71468000)
• Hansgrohe Vernis Blend Shower holder set Vario EcoSmart with shower hose 160 cm, Chrome (26278000)
• Hansgrohe FixFit Wall outlet Square with non-return valve (26455000)
• Hansgrohe Vernis Shape Shower arm 24 cm, Chrome (26405000)
• Hansgrohe basic set iBox universal (01800180)

Vernis Shape Overhead shower 230 1jet EcoSmart (26283000):

• shower head size: 230 x 170 mm
• spray type: Rain
• ball-joint: overhead shower angle adjustable
• material spray disc: plastic
• maximum flow rate at 3 bar: 8,7 l/min
• minimum function point for proper function: 4,4 l/min
• minimum flow pressure: 1 bar
• overhead shower removable for cleaning
• installation: ceiling or wall
• connection thread G ½
• connection dimension: DN15
• suitable for continous flow water heaters
• QuickClean: lime scale is easily removed by wiping the silicone nozzle
• XXL Performance
• EcoSmart: uses up to 60% less water than conventional products – without any loss of comfort

Hansgrohe Vernis Shape Single lever bath mixer for concealed installation, Chrome (71468000):

• 2 functions
• connection type: basic set
• flow rate upper outlet: 21 l/min
• flow rate lower outlet: 29 l/min
• min. operating pressure: 1 bar
• max. operating pressure: 10 bar
• ceramic cartridge
• temperature limitation adjustable
• diverter with automatic resetting
• suitable for continous flow water heaters

Hansgrohe Vernis Blend Shower holder set Vario EcoSmart with shower hose 160 cm, Chrome (26278000):

• consists of: hand shower, shower holder, shower hose
• shower head size: 100 mm
• integrated support function
• spray type: Rain, IntenseRain
• spray type adjustment by turning spray disc
• maximum flow rate at 3 bar: 9,7 l/min
• minimum flow pressure: 1 bar
• wall supports of plastic
• rinseable screen seal
• EcoSmart: uses up to 60% less water than conventional products – without any loss of comfort
• QuickClean: limescale deposits and dirt on hansgrohe mixers and showers disappear in an instant. Simply rub the soft silicone pins
• XXL Performance: a large shower with incredibly generous jets

.
Hansgrohe FixFit Wall outlet Square with non-return valve (26455000):

• plastic connection angle
• non-return valve

.
Hansgrohe Vernis Shape Shower arm 24 cm, Chrome (26405000):

• length: 240 mm
• shaft Ø: 26 mm
• installation type: exposed installation
• material: solid brass
• version: 90° angle
• connection type: G ½
• including: shower arm, rose, mounting material, mounting instructions

.Hansgrohe basic set iBox universal (01800180):

• suitable for all shower, bath tub and thermostat finish sets for concealed installation
• connection thread Rp ¾
• rotationally-symmetric installation
• sound-decoupled installation
• connection dimension: DN20
