- Length19.7 cm
- Width15.6 cm
- Height113.0 cm
- Tank capacity6.0 l
- Evacuation positionHorizontal
- Output typeHorizontal
- Support frameWall
- ManoMano ReferenceME71256552
- Product codeRapidSL-SP26-1

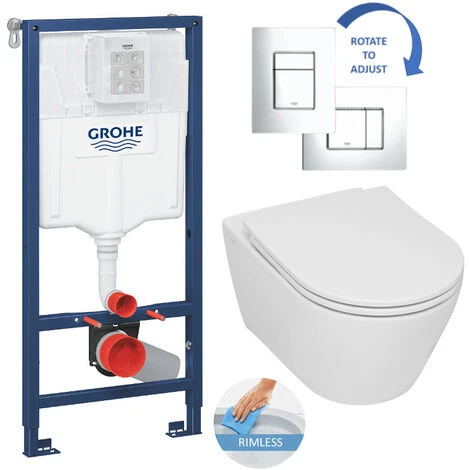

Features of the Toilet Set Rapid SL support frame + Serel SP26 rimless toilet, invisible fixings + Softclose seat + Chrome plate (RapidSL-SP26-1) :Â
- Grohe Rapid SL Frame set (38811000)
- Skate Cosmopolitan toilet flush plate (38732000)
- Serel Wall-hung rimless toilet, invisible fixings, without seat, White (SP26KSS110H)
- Grohe Rapid SL wall bracket fixing kit (3855800M):
.

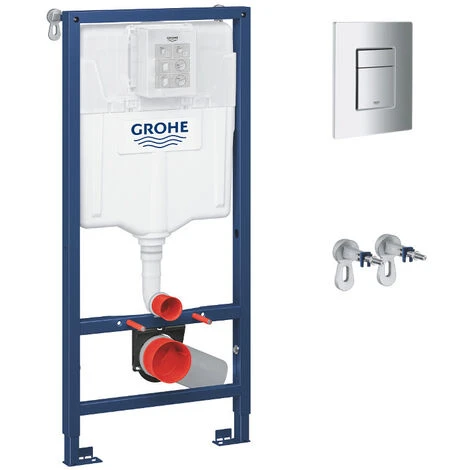

Grohe Rapid SL Frame set (38811000) :
-
GD 2 cistern, with inspection hatch
- Height: 1,13 m
- Steel frame with epoxy finish
- Mounting on load-bearing walls or in light weight double framed walls
- Quick adjustment and locking of the height up to 200 mm
- Supplied with fixing material
- TÜV approved
- Supplied with bolts and nuts for fixing the toilet bowl, ceramic fixing
- Distance between fixings 180/230 mm
- PP drain elbow Ø 90 mm
- Depth and height adjustable (200 mm)
- Reducing connection DN 90/110
- Drainage and supply fitting
- Tank 6 – 9 l
- Factory setting 3 and 6 l
- Pneumatic release mechanism (AV1) for one-touch (interruptible) and two-touch (interruptible) control panel
- Side or rear supply
- Condensation-proof tank
- Water supply with angle valve and flexible connection
- Installation of the template, horizontal or vertical, without tools
.

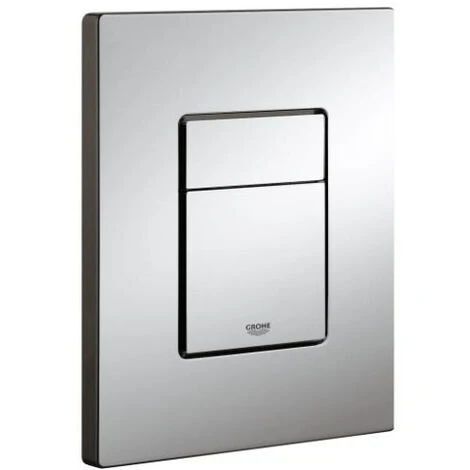

Skate Cosmopolitan toilet flush plate (38732000) :
- Two-touch or interruptable
- For pneumatic mechanism
- 156 x 197 mm
.
Serel Wall-hung rimless toilet, invisible fixings, without seat, White (SP26KSS110H) :
- Wall-hung rimless bowl in Hygiene plus white glazed ceramic
- Anti-bacterial treatment
- Rimless Pure Wash technology for total bowl surface cleaning
- Bowl from the brand SEREL
- Dimensions : 530x 340 x360 mm
.
Grohe Rapid SL wall bracket fixing kit (3855800M) :
- Rapid SL wall bracket
- For surface mounting
- For mounting on wall or partition
- Infinitely variable depth adjustment 130 – 230 mm
- Supplied with fixing materials
- 2 pieces
