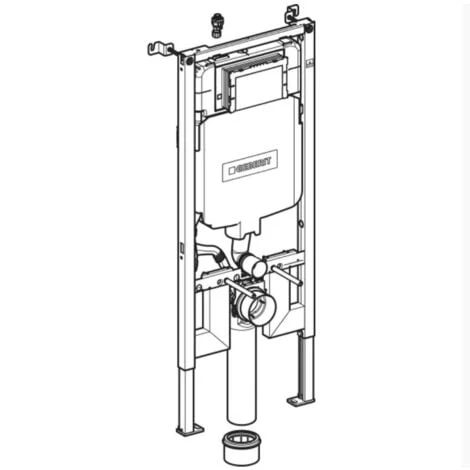

Geberit UP720 Extra-flat Stand 114 Cm Support Frame, Space-saving, With Sigma Concealed Cistern (111.796.00.1)

Features of the space-saving, extra-flat 114 cm UP720 stand with 8 cm Sigma concealed cistern, Geberit Duofix (111.796.00.1) :

• Frame suitable for WC bowls with small support surface (with pressure-resistant wall cladding)
• Galvanised, infinitely adjustable, non-slip support feet
• Depth of foot plates suitable for installation on UW 50 profiles and Geberit Duofix system rails
• Connecting bend for different depth positions, can be mounted without tools
• Connecting bend for depth position flush with the front for vertical installation
• Extended connection bend, for floor connection
• Connection bend fastening with sound insulation
• Built-in tank with front release
• Built-in tank insulated against condensation
• Immediate post-flushing possible with factory setting
• Installation and maintenance work on concealed cisterns without tools
• Water inlet from the top left
• Access panel housing, protects against moisture and dust
• Access panel box, can be cut to size, suitable for flush-mounted trigger plates
• Equipped with a supply line sleeve for connection of Geberit AquaClean washbasins
• With fixing possibilities for electrical connection

Use :

• For dry wall construction
• For installation in walls at room height or partial height
• For installation in installation walls at room height
• For wall-hung toilets extended to 70 cm
• For one-touch, two-touch or interruptible flushing
• For screed heights of 0-20 cm

Scope of delivery :

• R 1/2″ supply line, MF compatible, with integrated angle valve and hand wheel
• Reservation box for inspection hatch
• 2 wall mountings
• WC connection set, ø 90 mm
• 90° PE-HD connection bend, ø 90 mm
• Transition sleeve made of PE-HD, ø 90 / 110 mm
• 2 protective caps
• 2 threaded rods M12
• Fixing material
