Geberit Duofix UP720 WC 1140mm Toilet Frame With 80mm Sigma Cistern – Blue

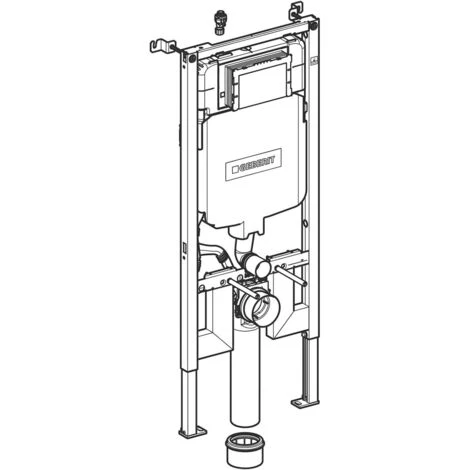

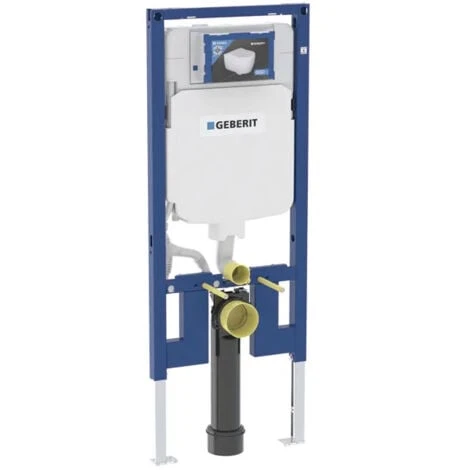

This is the part of a concealed toilet which you rarely see – the frame which holds the cistern and is designed to be hidden behind the wall out of sight. It’s an important part of the set-up, and with a wide variety of different sizes of frames and capacities of cisterns to choose from, take the time to choose the correct one for your home and requirements. Gerberit is a well-known name in the world of plumbing installation, and this is a durable and reliable piece of equipment which comes with one of the longest guarantees in the market – a full 1 years. Frames of this type are easy to install, and once in place with the wall in front of the frame, you can easily achieve the minimalist look that is so fashionable in any modern bathroom.

The cistern is designed to be resistant to condensation, and is suitable for installation on many different types of floors. As the frame is designed to be self-supporting, it is also a great choice for homes where the walls are not suitable or strong enough to support the weight of the water. And all at a great value for money price.

Features and Benefits:

• For single flush, dual flush or stop-and-go flush
• Supplied with UP720 sigma cistern 8cm
• Comes with C profile 40/40 mm
• Installation of a wall-hung WC with bolt fixings set at 180 or 230 mm centres
• Installation in a room-height Duofix system wall in front of a solid or drywall construction
• Installing in a load bearing stud wall
• Connecting AquaClean
• Self-supporting product
• Concealed cistern fully insulated against condensation
• Water supply connection at the top, offset to the left side
• Easy to clean coating on glass and metal
• Frame with 9 mm drilling holes for fastening in wood frame construction
• Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
• Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails
• Connection bend can be mounted without tools at different depths, adjustable range 45 mm
• Fastening for connection bend, sound-absorbing
• Concealed cistern with front actuation, fully insulated against condensation
• Tool-free installation and maintenance work on concealed cistern
• Protection cover box for service opening protects against moisture and dirt
• Protection box for service opening can be cut to length
• Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
• Supplied with a 1 year guarantee from the manufacturer

Important Information:

• Flush plate sold separately (Available in our Store)
