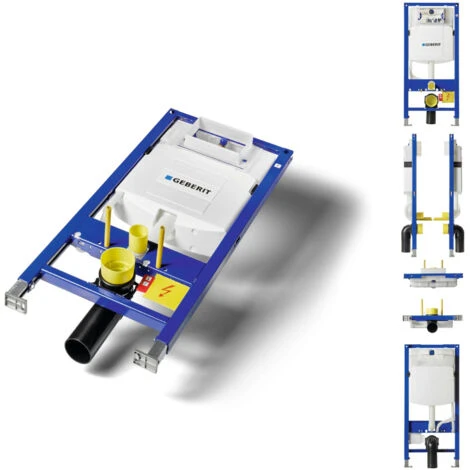

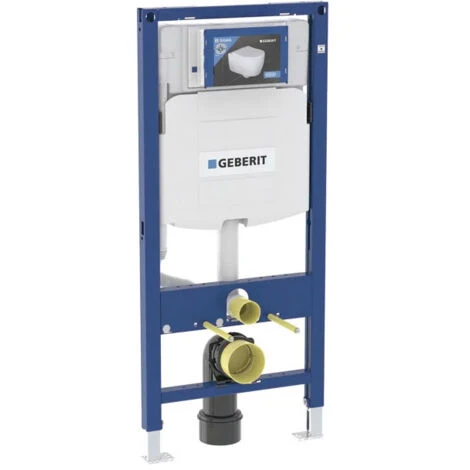

Geberit Duofix UP3201 WC Toilet Frame 1120mm With 120mm Sigma Cistern Pre-Wall Blue

Close coupled toilets which look sleek and modern are hugely fashionable at present and one of the main benefits is that the cistern is hidden away behind the wall. This Gerberit frame with cistern is the bit which goes behind the wall and is totally concealed, hence its unusual looks. Sturdy and functional, this frame and cistern is easy to install and will provide water to a large range of compatible toilet pans.

Swiss company Gerberit is one of the world leaders in this type of toilet construction, and make a wide range of toilet frames and cisterns in different sizes, so if this one isn’t the right size for you, take a look at the other sizes which we also stock. If you are thinking about giving your bathroom a makeover or renovation then this could be the perfect starting point, and at a price which we’re sure you’ll agree is excellent value for money.

Features and Benefits:

• Concealed cistern with front actuation
• With front access to cistern
• With wall fixing brackets
• With 90 degree drainage bend
• With connectors for both flushing inlet and soil disposal
• Designed to fix WC spigots of 102mm +or-5mm
• Suitable for Sigma flush plates and remote buttons
• Installation depth of 140 – 200mm
• Frame with 9 mm drilling holes for fastening in wood frame construction
• Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
• Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails
• Connection bend can be mounted without tools at different depths, adjustable range 45 mm
• Fastening for connection bend, sound-absorbing
• Concealed cistern with front actuation, fully insulated against condensation
• Tool-free installation and maintenance work on concealed cistern
• Protection cover box for service opening protects against moisture and dirt
• Protection box for service opening can be cut to length
• Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
• Supplied with a 1 year guarantee from the manufacturer

Important Information:

• Flush plate sold separately, (Available in our Store)
