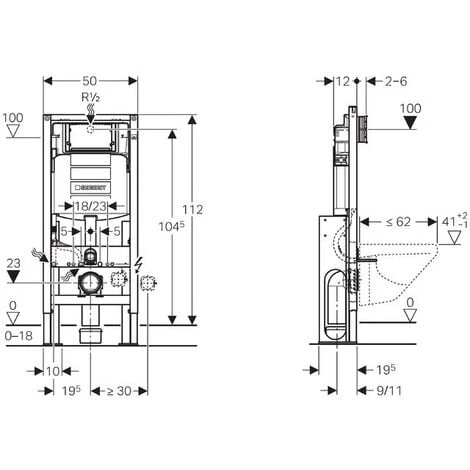

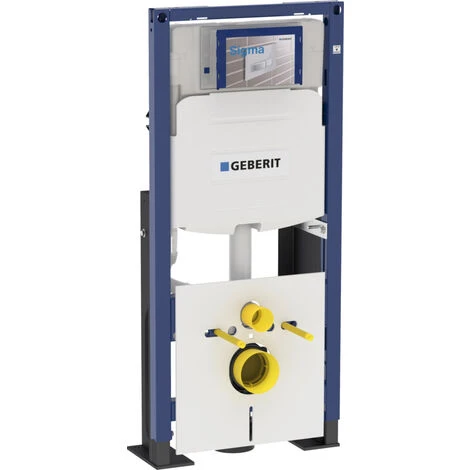

Geberit Duofix Element For Wall-hung WC, 112 Cm, With Sigma Concealed Cistern 12 Cm, Freestanding, Reinforced (111.380.00.5)

Features of the Duofix element for wall-hung WC, 112 cm, with Sigma concealed cistern 12 cm, freestanding, reinforced (111.380.00.5):

• Flow pressure: 0.1-10 bar
• Maximum operating temperature, water: 25 °C
• Flush volume, factory setting: 6 and 3 l
• Flush volume large, adjustment range: 4 / 4.5 / 6 / 7.5 l
• Flush volume small, adjustment range: 2-4 l

Application purposes:

• For drywall construction
• For freestanding installation on concrete floors
• For wall-hung WCs with connection dimensions in accordance with EN 33:2011
• For wall-hung WCs with large projection up to 70 cm
• For floor constructions 0–18 cm

Characteristics:

• Self-supporting frame, powder-coated
• Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
• Leg supports protected against corrosion
• Feet adjustable 0–18 cm
• Non-slip leg supports
• With large foot plates, reinforced, for raised power supply in floors
• Connection bend can be mounted without tools at different depths, adjustable range 45 mm
• Concealed cistern with front actuation
• Concealed cistern, fully insulated against condensation
• Immediate post flush possible with factory setting
• Tool-free installation and maintenance work on concealed cistern
• Water supply connection on the rear or top centre
• Protection cover box for service opening protects against moisture and dirt
• Protection box for service opening can be cut to length
• Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
• With fastening option for electrical connection

Scope of delivery:

• Water supply connection Rp 1/2″ – R 1/2″, compatible with MF, with integrated angle stop valve and hand wheel
• Protection box for service opening
• 2 protection plugs
• Connection set for WC, ø 90 mm
• Connection bend made of PE-HD, ø 90 mm
• Adaptor socket made of PE-HD, ø 90 / 110 mm
• 2 threaded rods M12
• 6 heavy-duty dowels M8
• Sound insulation set
• Fastening material
