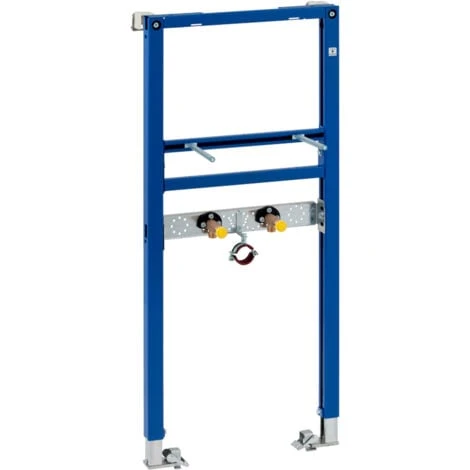

Geberit Duofix Basin Frame Pre-Wall 1120mm X 500mm Blue

Features and Benefits:

• With holes 9 mm for fastening in wood frame construction washbasin fastening distance 50 – 380 mm galvanised leg supports
• Steplessly adjustable 0 – 200 mm self-supporting frame
• Adjustable height with wall brackets
• Geberit’s Duofix frame system is the backbone to any modern bathroom design
• Hidden behind the wall and tiles
• For structures on the floor, leg supports can be retracted to – 50mm
• For installation in a room-high Duofix system wall
• Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails
• Fastening for connection bend, height-adjustable and sound-absorbing
• Crossbar for tap adjustable in height and depth
• Self-adhesive sealing washer, fleece-laminated
• Supplied with a 1 year guarantee from the manufacturer
